New Holland error codes and symbols are common terms for farmers, operators, and maintenance personnel. Knowing these code meanings is beneficial to finding the problems and coming up with solutions. This guide will give you a quick idea of what common error codes mean.

What Are New Holland Error Codes?

You can think of New Holland’s fault code as a reminder from the machine “the brain” (that is, the electronic control module, ECM). ECM monitors the operation of key components such as engines and hydraulic systems at all times. As long as there are sensor readings outside the normal range or a component doesn’t respond, the system generates a corresponding fault code. This code is equivalent to a machine telling you: “Something is wrong here.” The code will be displayed on the dashboard, and a corresponding warning symbol will light on. Learning to recognize the new Holland error codes is the first step in quickly identifying problems.

Common Types of New Holland Error Codes & Symbols

New Holland error codes and dashboard symbols let you know when something’s wrong.. There is a clear correspondence between the code and the symbols. This is the basis for machine diagnostics and operator alarm systems. When a machine breaks down, not just a single code is logged. It also tells you what’s wrong with audible alerts, text messages on the display, and, most intuitively, dashboard symbols. Symbols quickly display the problem type without being affected by language, while fault codes provide specific information for easy diagnosis and repair. Each error code corresponds to a different question and dashboard symbol, giving the operator a faster idea of the machine condition.

Engine Error Codes

The engine error codes were mainly the 3000 series. These codes are generated by the ECU (engine control unit) and are directly related to engine operation. They deal with engine performance, fuel systems and emissions systems, including fuel injection, air intake, cooling, lubrication, and emission control.

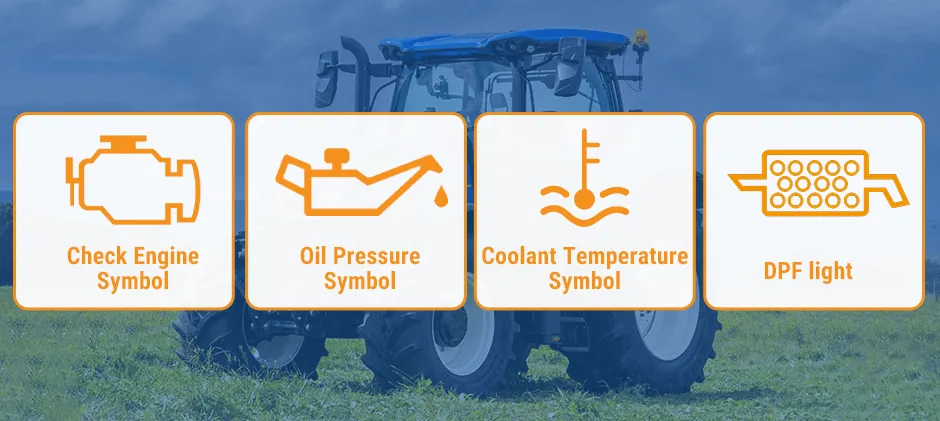

1. Check Engine Symbol: This is a universal symbol, shaped like an engine block and usually amber. It lights up to some common problems, but it may not be that urgent.
2. Oil Pressure Symbol: Looks like an old-fashioned oil jug shape. If the problem is serious, it will light up in red. It lights up to show that the oil pressure is too low or there is a problem with the pressure sensing circuit. For example, fault code 3028 (low engine oil pressure signal), this light goes on.
3. Coolant Temperature Symbol: This light is like a thermometer immersed in a liquid, and will turn on red when the engine overheats. Overheating can be low coolant, a failing water pump, or a faulty temperature sensor.
4. Emissions System Symbols: Modern tractors have symbols for the Diesel Particulate Filter (DPF) and Diesel Exhaust Fluid (AdBlue/DEF). These symbols will light up to indicate a need for regeneration, a low DEF level, or a fault within the after-treatment system.

Hydraulic System Codes

The main ones are 1000 series (rear lift/EDC), 4000 series (remote valve/EHR), 9000 series (front lift) and 10000 series (front axle suspension). These codes are all related to hydraulic systems, including lifting arms, hydraulic pumps, and related solenoid valve control.

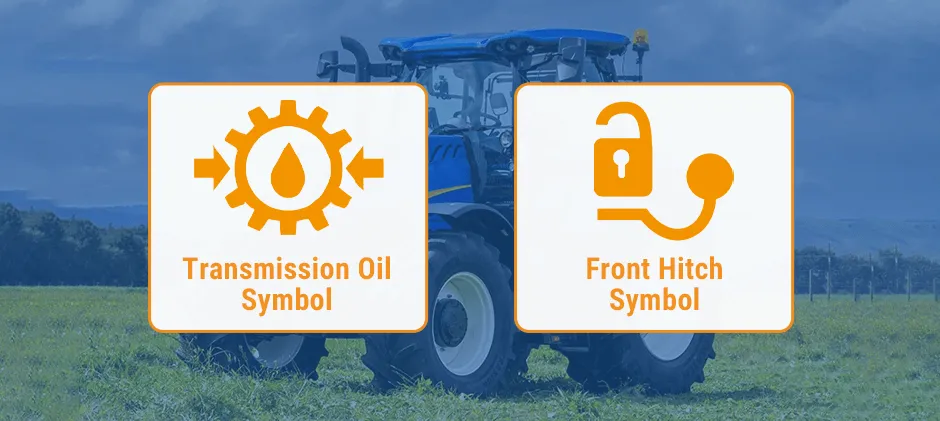

1. Hydraulic/Transmission Oil Symbol: Usually a gear wheel with a drop of oil in the middle. This symbol is used to alert users to a problem with temperature or pressure in hydraulic or transmission fluid. Normally amber, it turns red when the problem is serious.
2. Rear/Front Hitch Symbol: Three-point suspension like a tractor. This symbol lights up or flashes if something goes wrong with the electronic traction control (EDC) or position control system. A code like the 1000 series, like the position sensor fault code 1015, triggers this symbol.

Transmission Error Codes

It’s mainly the 2000 series. This series focuses on the transmission’s electronic control, covering problems with shifting, the clutch, or the drivetrain.

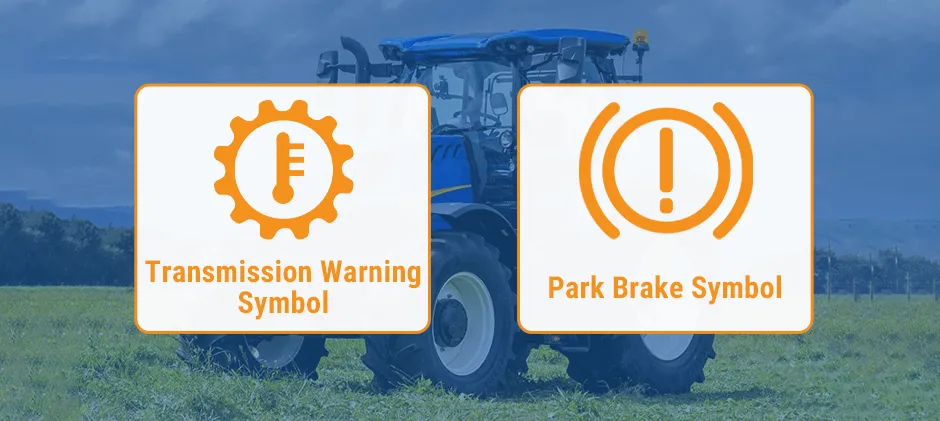

1. Gear/Transmission Warning Symbol: The most common symbol is a gear icon, often with an exclamation mark inside. This indicates a general transmission fault. A code such as 2040 (clutch solenoid short circuit) will cause this symbol to light up, often in red or amber, and may cause the gear display to flash or go blank.
2. Park Brake Symbol: While also a standard indicator, this symbol (a circle with a “P” or “!” inside) can flash or stay on if there is an electronic fault in the park brake circuit, preventing it from engaging or disengaging correctly.

Electrical System Codes

This type of code often points to more basic electrical problems. When these codes come, they can trigger fault codes for some other systems at once. Faults related to sensors, wiring, or control modules.

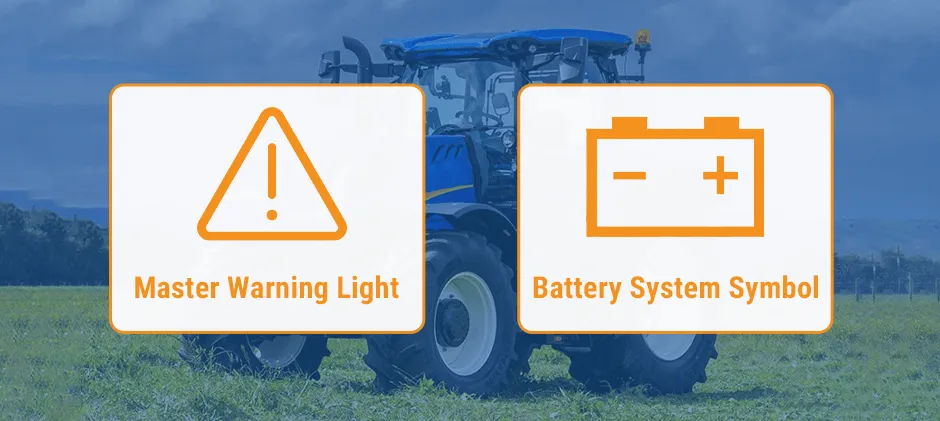

1. Master Warning Light: This is the main light for many electrical faults, especially if there is a problem with the communication between control modules (CAN bus). It shows the machine is faulty. The specific fault code on the display needs to be checked.
2. Battery/Charging System Symbol: The red battery icon indicates that there is a problem with the charging system. It could be a faulty alternator, a bad connection, or a general voltage issue.

Sensor Error Codes

This type of code is quite specific and points directly to a particular sensor. However, sensors often do not have their own unique symbols on the dashboard. Instead, a faulty sensor will trigger a warning symbol for its monitoring system. The logic of the machine is that if it cannot trust information from a sensor, it must declare a fault throughout the system that relies on that sensor.

1. An engine oil pressure sensor fault (a 3000-series code) will illuminate the Oil Can symbol.
2. A transmission speed sensor fault (a 2000-series code) will illuminate the Gear/Transmission symbol.
3. A rear hitch position sensor fault (a 1000-series code) will illuminate the Rear Hitch symbol.

How to Use the New Holland Code List?

For a quick recovery to work, the key is to make proper use of fault-code information. Before you check the list, do these steps first to collect and analyze info. It’ll help you find the issue faster.

1. Record all information: When the tractor breaks down, don’t just look at the code. Also note any symbols on the display, the color of the warning light (yellow or red), and what you were doing at the time—like lifting an implement, shifting gears, or starting the PTO.
2. Make an Initial Diagnosis: using this list, based on the numbers in the code (for example, seeing 3xxx would tell it was an engine problem, seeing 1xxx would tell it was a rear hoist problem), quickly locate a possible faulty system.
3. Analyze the Specific Description: Take a look at the code’s specifics, like “3006 – Coolant Temperature Signal – ABOVE NORMAL” (coolant temperature signal above normal, so you know where to look faster, like if there’s enough coolant, if the fan is spinning, whether the radiator is clogged, whether the water temperature sensor is broken, etc.
4. Consult the Official Manual: Always consult your machine’s official Operator or Service Manual as the final authority. Only the official manual can provide the most accurate trouble code information and diagnostic steps for your specific model and serial number.

Wrapping Up

Finding out New Holland error codes and symbols can help you find the problem. At the same time, it saves a lot of time and money by preventing small faults from turning into big faults. If the code prompts that a part is worn or broken, it’s better to replace it as soon as possible.

For that, MechLink offers a range of high-quality aftermarket parts at affordable prices. With many New Holland parts, you can find the right replacement sensor, filter, and more. Get your New Holland machine running smoothly now!
