If you’re looking for a Kubota skid steer loader that offers high power and a large lifting capacity, you might be interested in the biggest Kubota Skid Steer. It’s the overall lead in the core performance of power, lifting capacity, and hydraulic output, not just size. Based on extensive experience in construction equipment, we give an answer to this question here.

What Is the Biggest Kubota Skid Steer?

In Kubota’s skid steer loader product line, the Kubota SVL97-2 is the largest model. At the performance, it has the strongest power, the highest lifting capacity, and the widest compatibility of attachments. In order to equip a more powerful engine, a stronger structure, and heavier counterweights, the SVL97-2 was also the biggest in size and weight. Next, specific specifications will help you determine whether the model is suitable for your project.

SVL97-2 Specifications

Dimensions

Engine

It is a CRS (Common Rail System) diesel engine. CSR engines contribute to more optimized performance and emission control.

Undercarriage

Hydraulics

Loader Performance

Travelling Speeds

Features

The SVL97-2 is packed with advanced features that enhance its reliability, comfort, and overall performance.

Performance

1. Lifting capacity: The average lifting capacity of a skid steer is about 1,896 pounds, but the Kubota SVL97-2 model has 5,868.7 pounds, far beyond the average.
2. Standard 2-Speed Travel: It can be switched between low speed (powerful pushing) and high speed (up to 7.3 mph) for rapid movement.
3. High Ground Clearance: With 11.5 inches of ground clearance, the SVL97-2 can easily over obstacles.
4. Excellent Visibility: The cab has a clear 360° view, enhancing safety for the operator and others on site.

Enhanced DEF System

The Diesel Exhaust Fluid (DEF) system has been enhanced for long-term reliability. This means less downtime related to emissions system maintenance.

Telematics

The SVL97-2 comes standard with KubotaNOW™ telematics. This system acts as a digital link to your machine, accessible via the myKubota app. It offers Kubota owners added protection, including real-time location, geo-fencing, and the anti-theft feature. It also monitors fuel levels, engine status, and battery voltage.

Comfort

1. Pressurized Cab: Keep dust, debris, and water out, creating a cleaner work environment and making the A/C more effective.
2. Ergonomics: A wide entrance and ergonomically placed multi-function levers.
3. Control: A hand dial and foot throttle allow the operator to precisely match engine speed to the task.

Durability

1. Integrated Undercarriage: The mainframe and undercarriage are welded together for maximum structural integrity.
2. Triple Flange Track Rollers: This design improves stability and reduces the risk of de-tracking on rough or sloped terrain.

Versatility

The SVL97-2 is a true multi-tool thanks to its advanced controls.

1. Multi-function levers: Allow you to control the equipment and attachments while keeping your hands on the lever.
2. Quick Coupler: Optional hydraulic quick connectors are available. Use the switch to attach or detach attachments without leaving your seat.

Maintenance

1. Tilt-Up Cab: The entire cab tilts up in minutes, making it easy to check hydraulic pumps, valves, and lines.
2. Centralized Components: The rear bonnet opens to reveal key daily check points, like the engine oil dipstick and filters.
3. Slide-and-Tilt Radiator: The radiator and oil cooler slide out for easy cleaning.

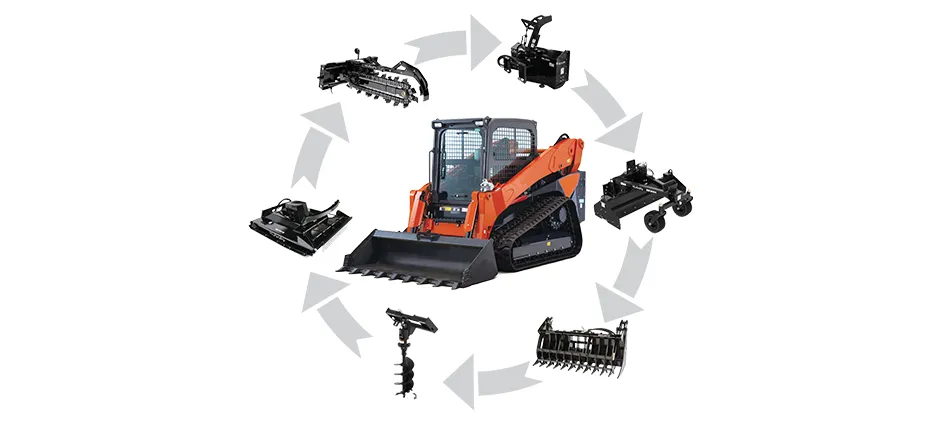

Attachments

One of the advantages of the SVL97-2 is its ability to drive a wide range of high-flow hydraulic attachments. This allows it to perform a wide variety of jobs. Common attachments include:

1. Grapple Buckets
2. Pallet Forks
3. Hydraulic Breakers
4. Cold Planers and Road Saws
5. Augers and Trenchers
6. Snow Blowers and Pushers

Applications of the Biggest Kubota Skid Steer

With its immense power and versatility, the SVL97-2 is an indispensable tool across several industries.

1. Construction: Ideal for demolition, site preparation, loading trucks with debris, and moving heavy building materials.
2. Agriculture: Perfect for handling large hay bales, cleaning out barns, and performing heavy-duty earthmoving tasks.
3. Landscaping: Capable of moving large trees, boulders, and pallets of sod, as well as major grading and excavation work.

Wrapping Up

The Kubota SVL97-2 entered production in 2021. Extreme performance is your best bet for tough tasks. To maintain optimal performance, regular maintenance and replacement of worn parts are essential. MechLink has been deeply involved in the heavy equipment parts business for 16 years, providing a variety of Kubota skid steer parts of high-quality. Browse our online store today to restore your equipment’s performance!
